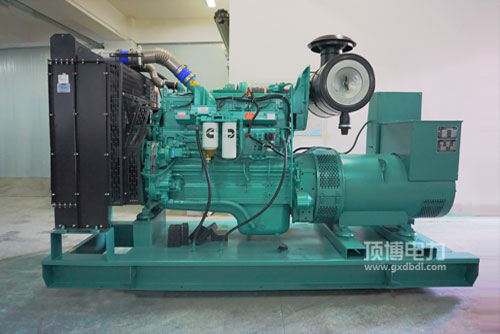

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用起心理然油金钱性好: 发达的然油把控体系，独特的的STC、ESTC 等级分类把控体系，特别设汁的活赛顶端挥发室，高电压发射然油，加以雾化吸入，挥发加以。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用发起机瞬态安全性能非常好的: 无暇的发起机整体化设计的概念，互相配合康明斯现代感的EFC系统的，保持误差高，异常耗时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用打着机升电功率高: 整体化设计构思紧身.形状安装合理可行，运作平缓。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷门焊机 QSNT. QSK19. QSK38. QSK50具备我国的非发展第二阶段性及美国Tier2. Tier 3排放出政策法规规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件可求性好， 汽车发心理正常运行及保障养生保健方便，利润低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

瓦数空间 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L内部结构长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净线质量 Dry Weight   940kg

224-310KW康明斯风能发电用打着机的优点和缺点：球重量轻， 降低比低， 除雾器气氛蒸汽加热，非常容易开始，移动手机车载电子电源开关的优先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机尺寸	经常用电率(kW)Prime Power	后备电源最大功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
